Cube Audio Nenuphar Mini Loudspeakers Black

CUBE AUDIO

Cube Audio Nenuphar Mini Loudspeakers Black

CUBE AUDIO HOME SPEAKERS

Sold out

12 -25 SQUARE METERS

Nenuphar Minis are dedicated for rooms of 12 – 25 square meters. They are a perfect match for a tube amp with at least 3 Watts per channel. Our personal preference is somewhere around 2A3, PX4, 45 tube-based amps. When it comes to placement, they can be placed both forward and placed right against the back wall. They like about 5-10 degrees of toe-in.

THE SPIDER

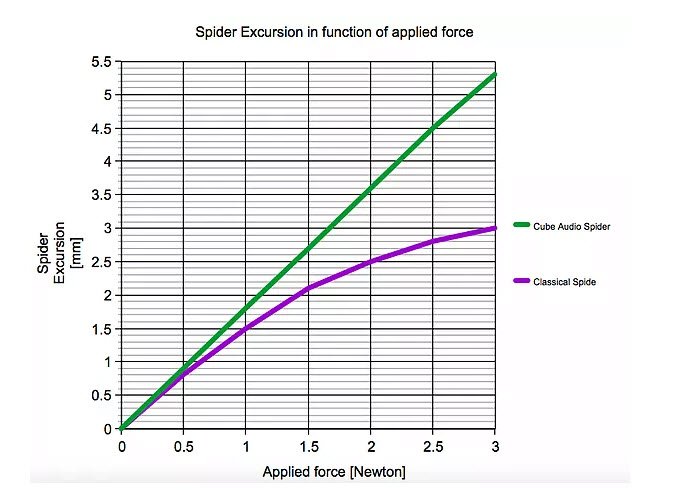

It is 100 % linear within the maximum excursion of the speakers ( + – 6mm). It behaves like a spring. It does not consume the energy by damping, it just positions the voice coil in the magnetic gap. The downside of such technology is that each spider has to be milled with a precise CNC machine. Nevertheless, the advantages are obvious and totally worth it. In order to measure the actual compliance (amount of excursion under known force) of the suspensions, we designed and custom made the special device to do the measurements. You can see the graph with the measurement comparison of our suspension and classical (resin-soaked cloth) spider below.

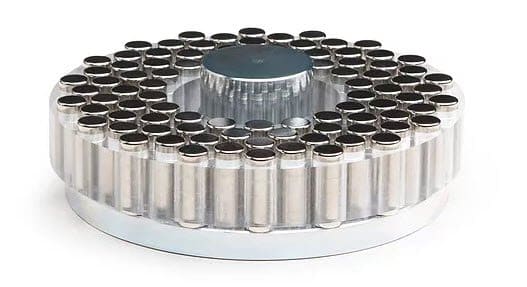

CUBE AUDIO 8 MAGNETIC MOTOR

The voice coil is completely underhung with +- 3 mm excursion in 100% magnetic field strength. Maximum excursion is +- 6 mm. Since the voice coil practically does not leave magnetic gap, with uniform field strength along all the gap height, the raw power, linearity and reduction of distortions are at their best. In order to maintain 0.01 mm tolerance of all elements, magnetic motor components are manufactured using computer-controlled CNC lathes.
