Main Features

♦ Seamless Integration: Designed for direct connection to an existing line input on PrimaLuna EvoLution series integrated amplifiers or preamplifiers, eliminating the need for extra plugs or cables.

♦ Advanced Circuitry: Utilizes Surface Mount Technology (SMT) to achieve the shortest possible signal path, reducing parasitic capacitances and inductance, which enhances audio fidelity.

♦ High-Quality Components: Constructed with selected components, including miniature film capacitors, minimelf resistors, and a superior op-amp, ensuring low noise, high speed, and robust drive capabilities.

♦ Versatile Cartridge Compatibility: Supports both moving magnet and high-output moving coil cartridges, offering flexibility for various turntable setups.

♦ Exceptional Audio Performance: Delivers a frequency response of 10Hz-50kHz, gain of 42dB, and maintains low distortion and noise levels at -83dB, resulting in a dynamic and immersive listening experience.

Seamless Integration with EVO Series Amplifiers

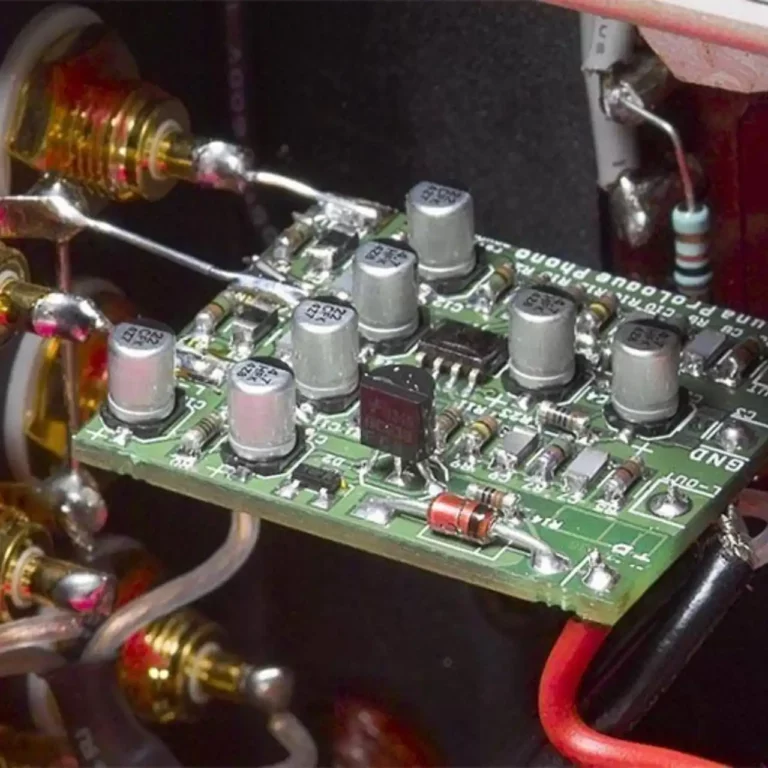

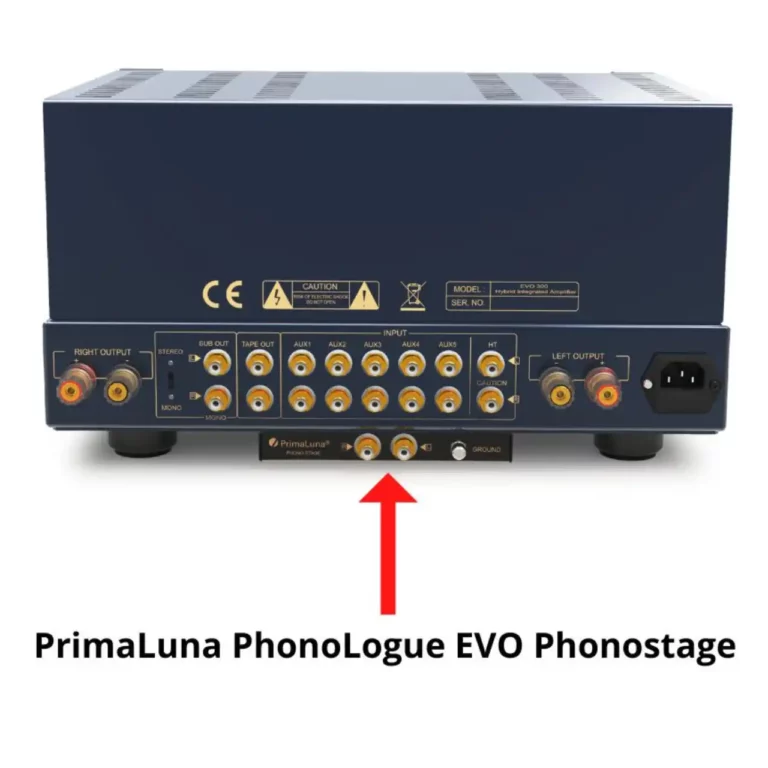

The EVO Phonostage is an internal phono stage that connects directly to one of the existing line inputs on your PrimaLuna EvoLution Integrated Amplifier or Preamplifier. It comes with all the installation material needed. No extra plugs or cables are required. Note that this product was intended ONLY for PrimaLuna EVO preamplifiers and integrated amps, but it is also suitable for use in other situations if the installer knows his stuff. We even know of situations where the board is installed in a separate metal chassis, the best place to mount a sensitive board like a phono stage board. This solution gave us the idea to mount a separate, fully shielded metal cabinet under the main PrimaLuna cabinet.

Compact Design with Superior Sound Quality

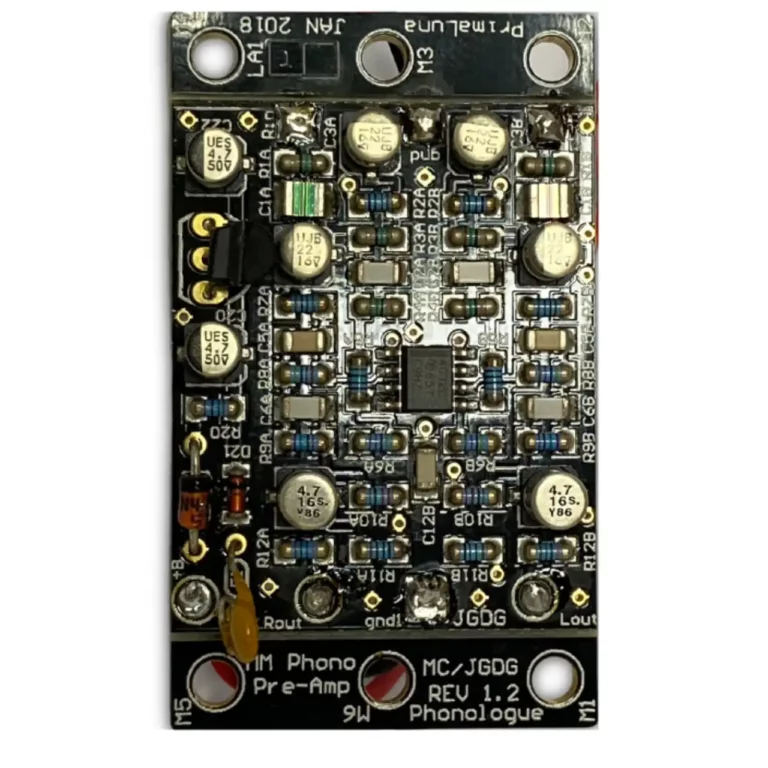

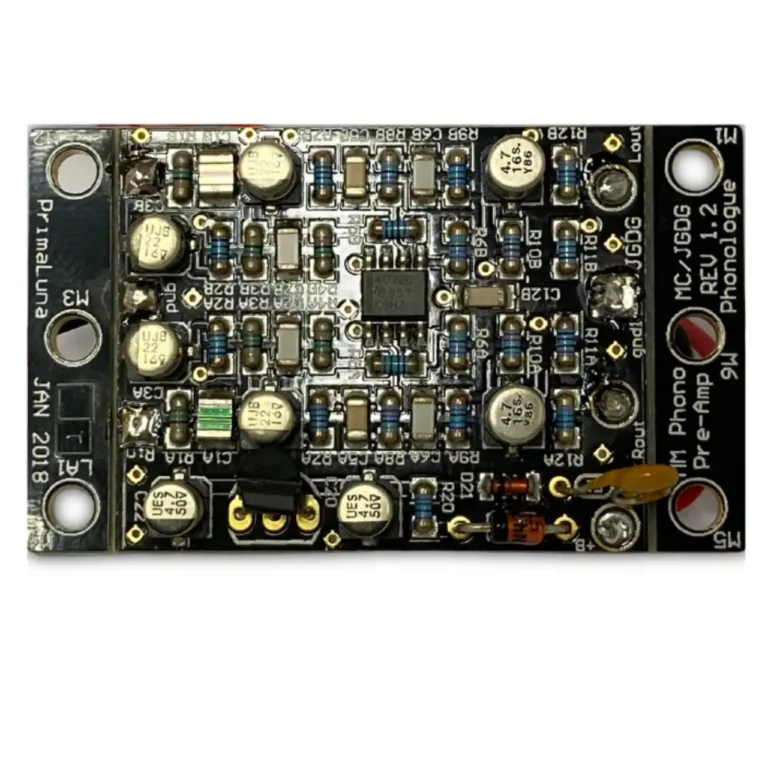

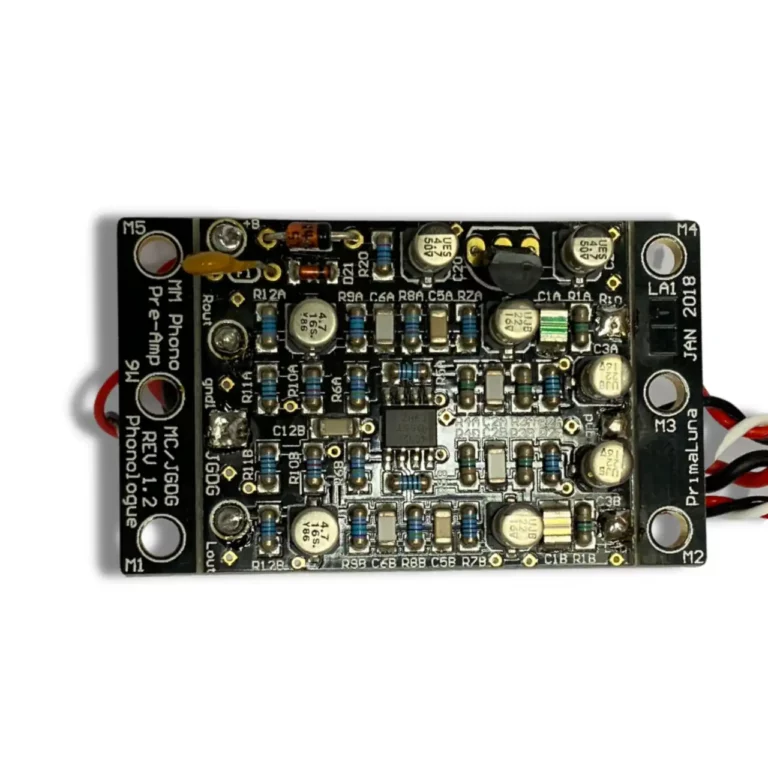

The PrimaLuna PhonoLogue Phonostage is a design by ex-Goldmund engineer Marcel Croese, our long-time technical department “chief.” The small size easily confuses potential owners as small and light aren’t as sensational as big, heavy, and expensive. Surface Mount Technology implementation was required for the shortest signal path and reduction of parasitic capacitances and inductance. At the same time, space reasons were evident, as initially, the board was intended for mounting inside the amplifiers.

The boards are made in Holland to ISO 9001 standards and boast selected components for the best sound quality. Miniature film capacitors, minimelf resistors, and a superior op-amp for lowest noise, highest speed, and robust drive. Low impedance electrolytes and a super low noise power supply result in a turntable experience with goose bumps without costing a fortune.

The PhonoLogue phono stage is suitable for both moving magnet and high-output moving coil cartridges and should be mounted by a skilled technical department of your PrimaLuna dealer. Complete mounting documentation is available on request.

GENERAL

Frequency Response : 10Hz-50kHz

Total Harmonic Distortion Plus Noise : -83dB

Input Impedance(s) : 50k Ohms

Gain : 42dB

Minimum Recommended Cartridge Output : 2.0 mV
