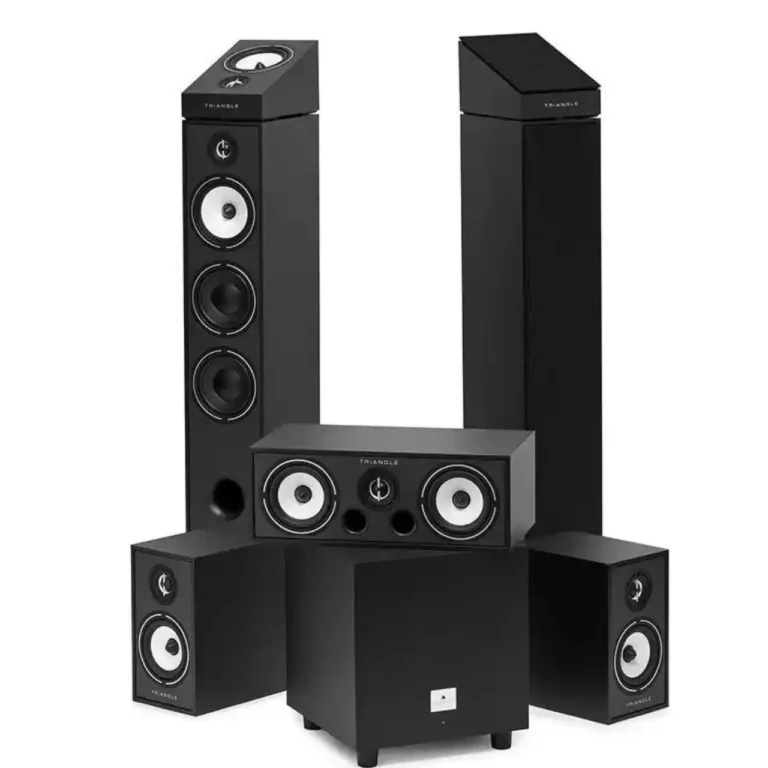

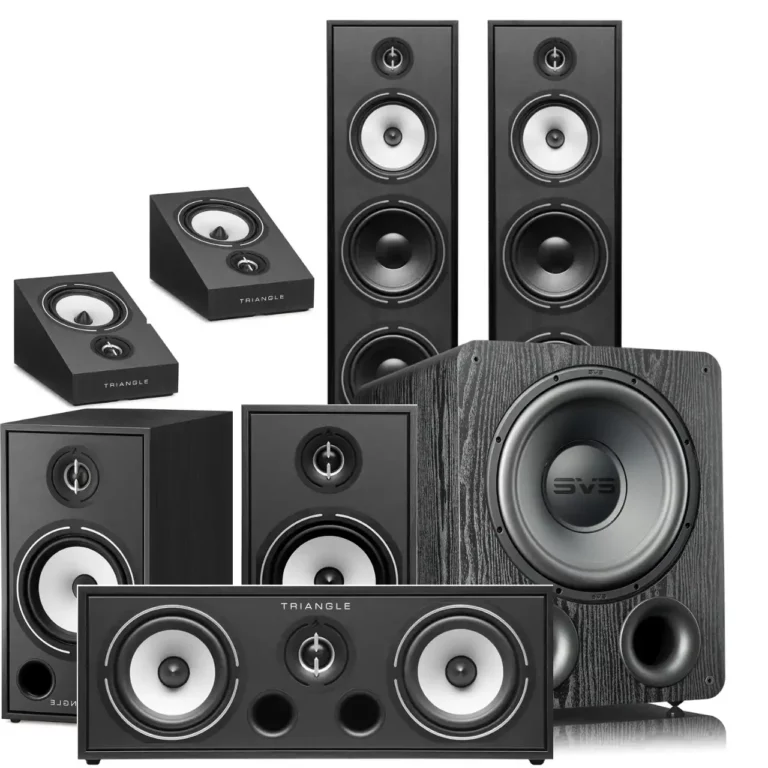

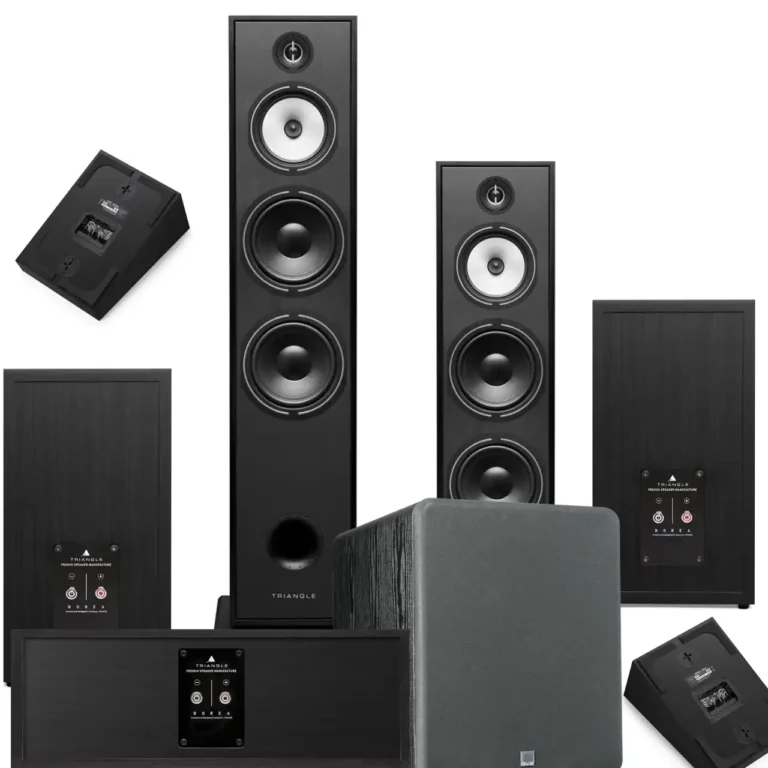

Triangle Home Theatre 5.1 Atmos Package

Included • Magnetic grille protection • Steel spikes for rug/carpet type surfaces • Rubber tips for rigid surfaces

Width 11,8 inch(es) / 300 mm

Height 43,7 inch(es) / 1145 mm

Depth 14,96 inch(es) / 435 mm

Width 9,64 inch(es) / 245 mm

Height 43,7 inch(es) / 1110 mm

Depth 14,96 inch(es) / 380 mm

Weight 59,52 lb(s) / 29,5 kg

Tweeter(s) 25 mm silk dome tweeter (EFS)

Midrange 6’’ with natural cellulose pulp membrane

Woofer(s) 2 x 8’’ with fiberglass membrane

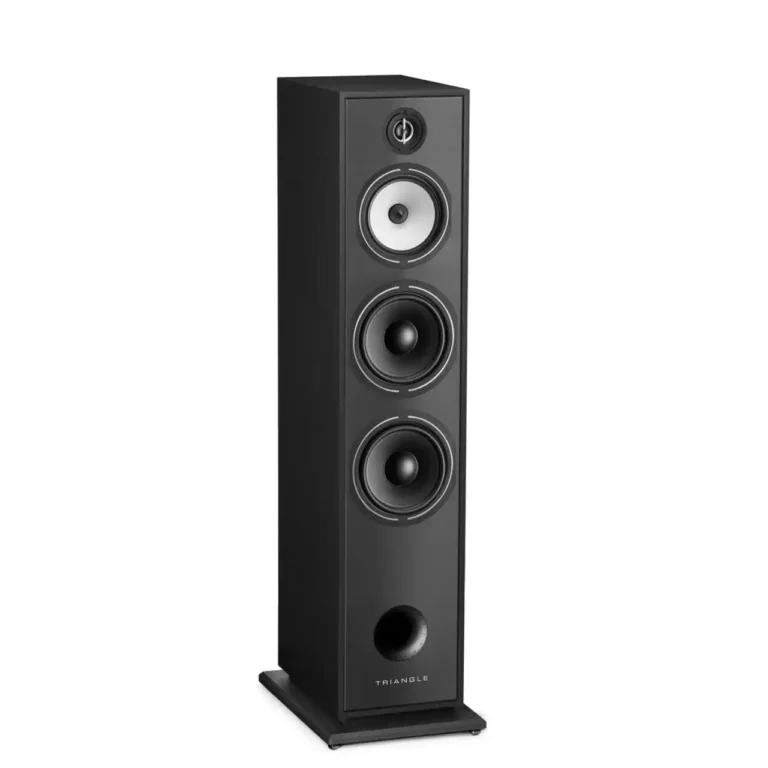

Type Floorstander speaker

Ways 3

Sensibility 92 dB (DB/W/M)

Bandwith 30 Hz - 22 KHz (+/- 3dB)

Power Handling 200 W (RMS)

Impedance MIN : 3 Ω ◊ MAX : 8 Ω

Crossover Frequencies 310Hz -3900 Hz

Length 14,56 inch(es) / 400 mm

Height 50,39 inch(es) / 1230 mm

Depth 20,07 inch(es) / 520 mm

Weight 73,41 lb(s) / 34,5 kg

UPC 3660216012142

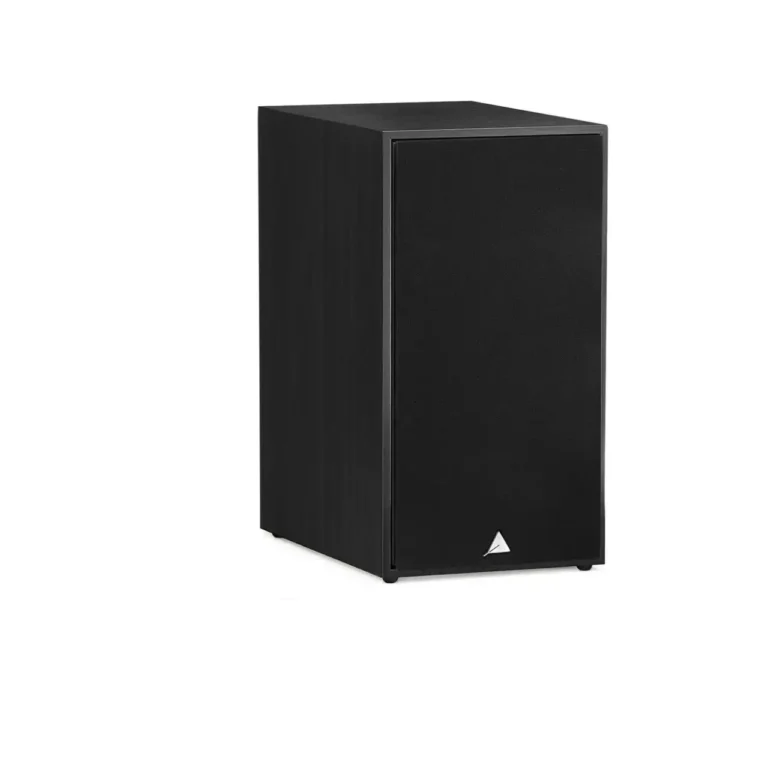

Width 8.1 inch(es) / 20.57 cm

Height 14.9 inch(es) / 37.85 cm

Depth 12.4 inch(es) / 31.5 cm

Weight 7 kg / 15.43 lbs (each)

Speaker Type Indoor

Color(s) Black

Number of Drivers 2

Frequency Response 46 Hz - 22,000 Hz

Sensitivity 90 dB

Power Handling 100 W

Impedance 8 ohms

High Frequency Drivers 25mm EFS silk dome tweeter

Midrange Driver(s) 16cm midrange/bass driver

UPC 3660216005892

Width 19.09 inch(es) / 48.5 cm

Height 6.93 inch(es) / 17.6 cm

Depth 10.79 inch(es) / 27.4 cm

Weight 7.76 kg (each)

Speaker Type Indoor

Color(s) Black Ash

Number of Drivers 3

Frequency Response 57 Hz - 22,000 Hz

Sensitivity 90 dB

Impedance 8 ohms

Weight 18.89 lb(s) / 8.57 kg

High Frequency Drivers 25mm EFS silk dome tweeter

Midrange Driver(s) Two 13cm midrange/bass transducers with a natural cellulose paper membrane

UPC 3660216006042

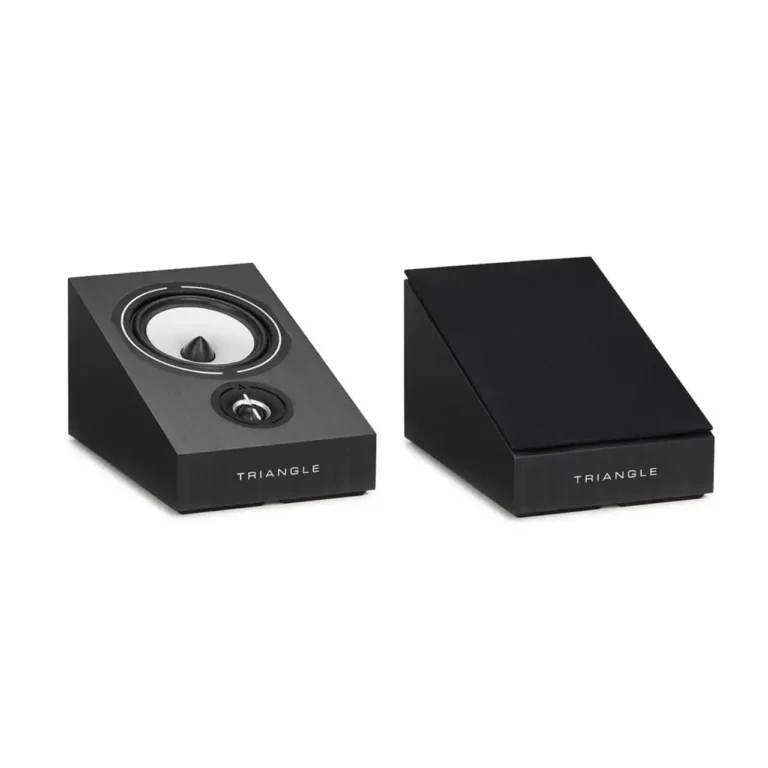

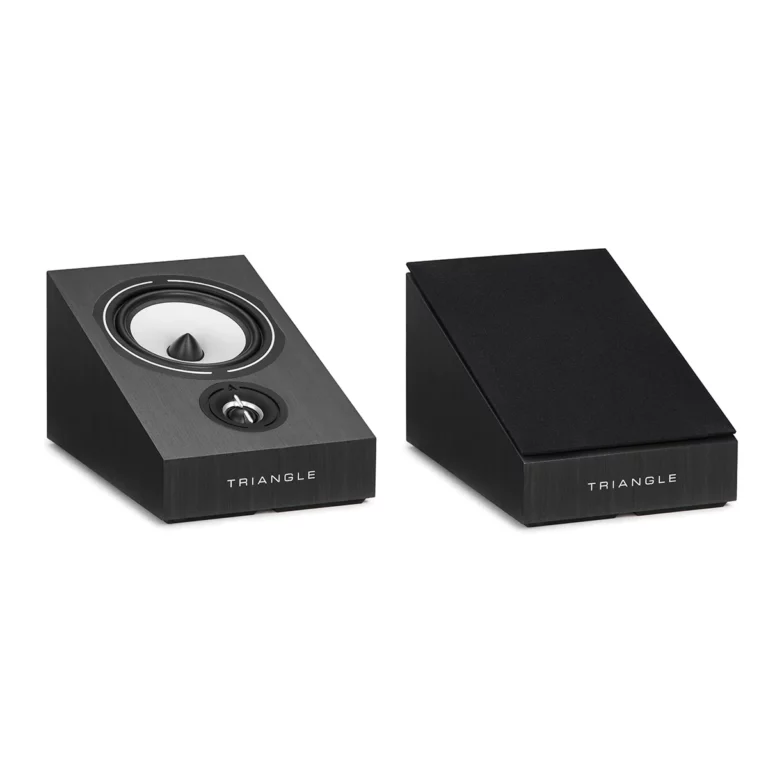

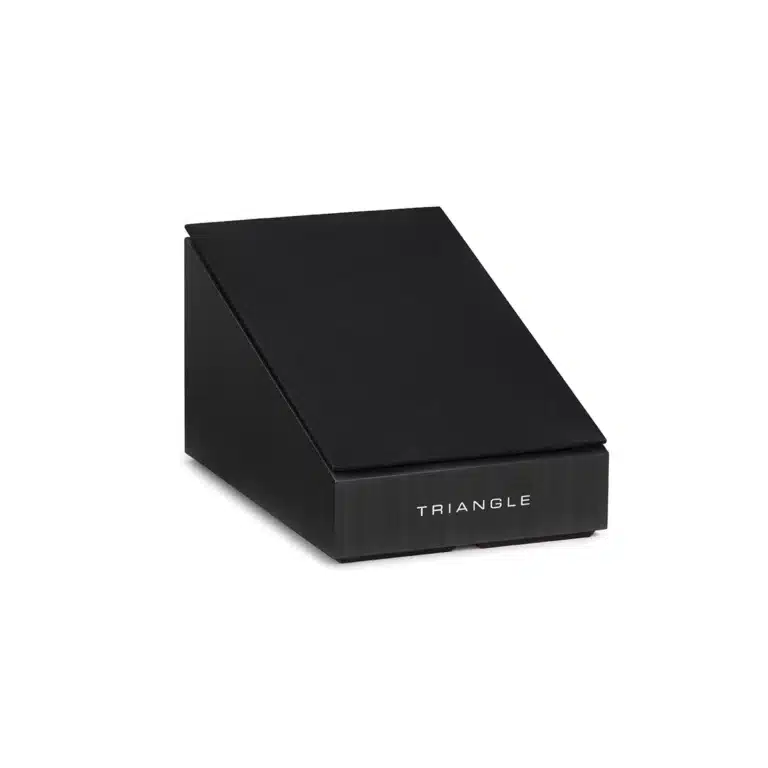

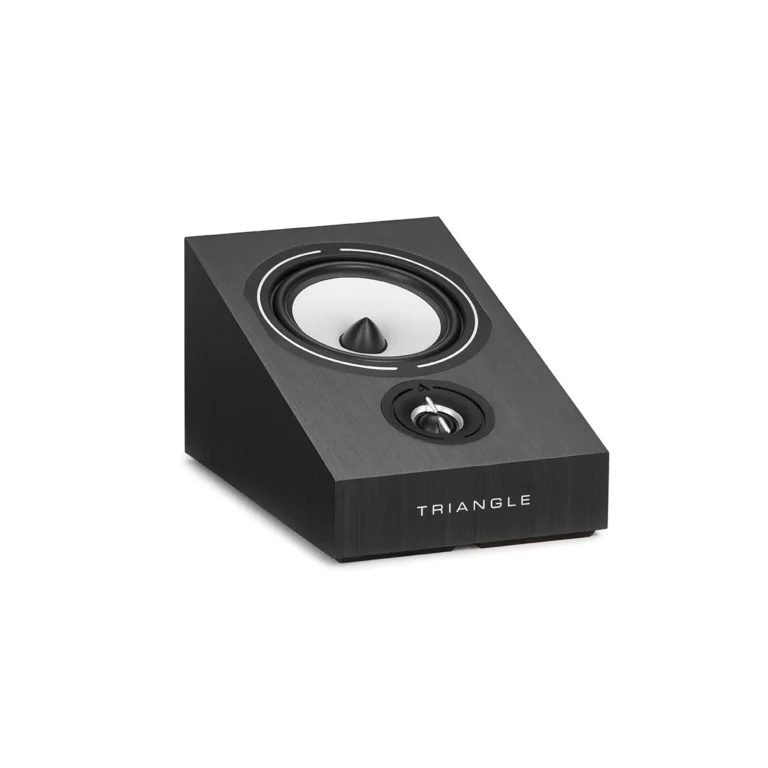

Width 8.1 inche(s) / 205.74 mm

Height 7.1 inche(s) / 180.34 mm

Depth 11.8 inche(s) / 299.72 mm

Weight 7.9 lb(s) / 3.58 kg per unit

Tweeter(s) 25 mm

Midrange 16 cm

Type Surround speaker

Ways 2

Sensibility 89 dB (DB/W/M)

Bandwith 90 Hz - 22 KHz (+/- 3dB)

Power Handling 80 (Watts RMS)

Impedance MIN : 4.5 Ω ◊ MAX : 8 Ω

Width 14.7 inche(s) / 373.38 mm

Height 11 inche(s) / 279.4 mm

Depth 14.7 inche(s) / 373.38 mm

Weight 18.73 lb(s) / 849.58 kg

UPC 3660216007636

Included Protective non-resonant extra-thick ABS fabric mesh grille ◊ Iso-elastomer feet included ◊ 2 Foam port tuning plugs ◊ Extra heavy-duty, high current 6-foot power cord ◊ Quick Start Guide

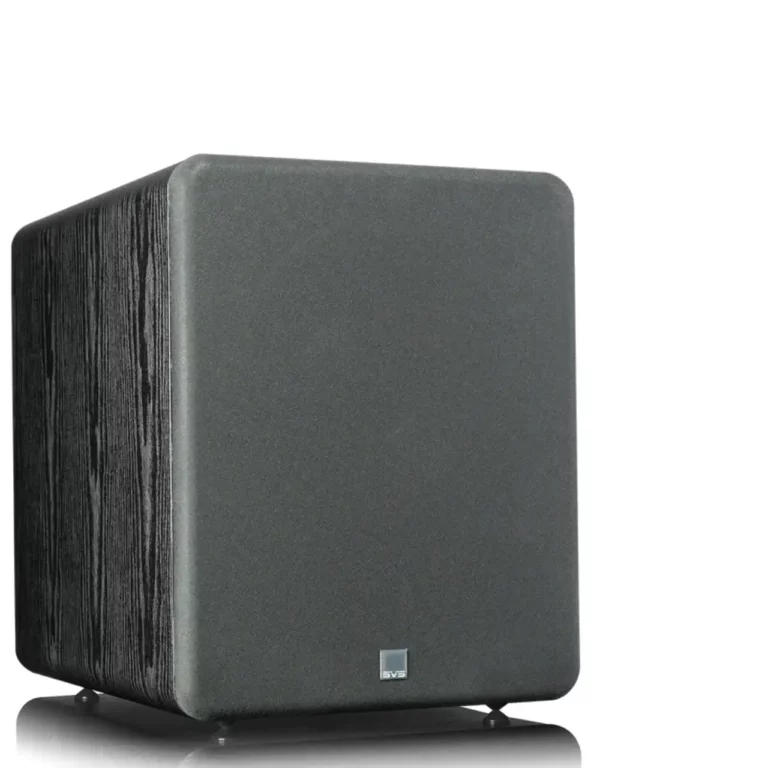

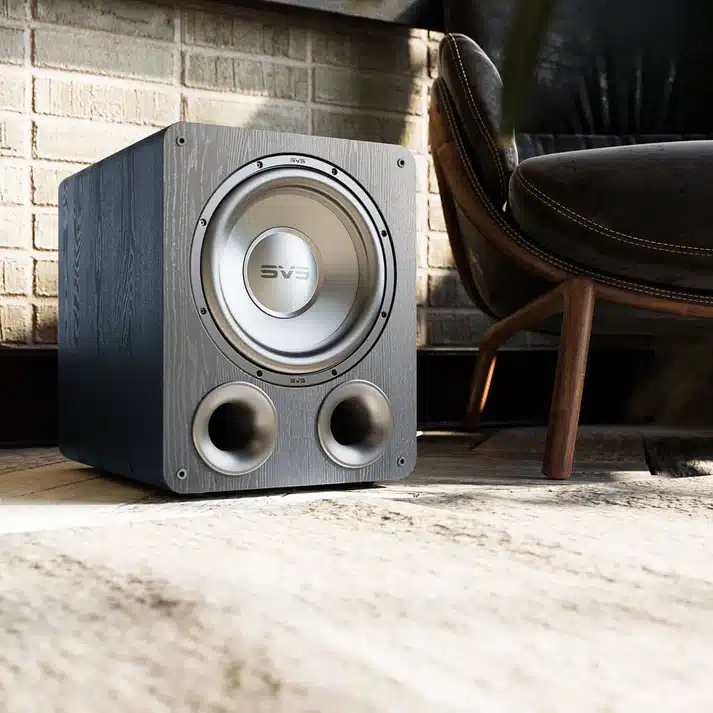

Type SVS Sledge-325D

Input Impedance(s) 16kohm (unbalance RCA) ◊ 1kohm (speaker level)

Additional Feature(s) 325 watts RMS, 820+ watts peak power output Class D design ◊ 50MHz Analog Devices Audio DSP, high resolution double precision 56bit filtering ◊ Wide input voltage bandwidth compliant for consumer and pro audio up to 4V line level input. ◊ High efficiency LLC resonant SMPS with 17A 650V MOSFET, resonant switching results in lower EMI and highest efficiency. ◊ Cool-running Class D amplifier switching topology with massive 34A 120V MOSFET’s ◊ SVS BLE control app for iOS and Android contains 3 complete name-able and customizable User presets, supports IOS (iphone5 or newer or Android (4.42 or newer), 3 PEQ's per preset, adjustable low pass, phase, polarity, room gain compensation, and control for best alignment with speakers SVS BLE control app for iOS and Android contains 3 complete name-able and customizable User presets, supports IOS (iphone5 or newer or Android (4.42 or newer), 3 PEQ's per preset, adjustable low pass, phase, polarity, room gain compensation, and control for best alignment with speakers ◊ Customer EQ and DSP limiter settings specifically for the 1000 Pro ◊ New Intelligent Feature control (IFC) user interface on the amplifier with bright blue 11 LED bar display and easy push-button controls.

Height 18.9 inch(es) / 479 mm

Width 15 inch(es) / 380 mm

Depth 19.2 inch(es) / 488 mm

Frequency Response 17-260 Hz +/- 3 dB (standard mode) ◊ 19-260 Hz +/- 3 dB (sealed mode) ◊ Expect 2-3 Hz deeper extension in small to mid-size rooms.

Driver(s) All-new proprietary 12-inch long-throw driver with high-precision tuned overhung motor configuration◊ 9.26lb (4.2kg) pound Woofer with 6.91lb (3.14kg) pounds motor ◊ 13.1mm Xmax, 26.8mm Xmech precision aligned excursion ◊ 1.5” diameter Voice Coil with high current 6-layer high-purity copper wire windings ◊ Premium high-purity copper voice coil winding design minimizes distortion and power compression with maximum heat dissipation, linearity, and tuned magnetics for high excursion ◊ Two-piece high grade oversized Y35 Ferrite magnet motor ◊ High Temperature 3003-H18 aluminum former/bobbing ◊ 6” composite cotton-poly extreme excursion linear spider ◊ Dual 24-strand copper-alloy high-temperature leads ◊ Proprietary injection molded gasket and NBR extreme-excursion surround ◊ Lightweight treated Fiber Composite cone for enhanced sensitivity and transient response ◊ Top plate assembly with low carbon 1010 steel for optimal magnetics ◊ Oversized low carbon 1008 steel T-yoke with integrated pole piece extension for maximum cooling and electromagnetics ◊ 12” premium powder coated basket with FEA optimized analysis for maximum rigidity, tensile strength, and energy transference ◊ Oversized motor system for driving full excursion and industry best SPL, with pinpoint transient speed ◊ Precision machining for motor and narrow tolerance suspension parts ensure flawless linearity at full range of excursion

Subwoofer Protective non-resonant extra-thick ABS fabric mesh grille ◊ Iso-elastomer feet included ◊ Extra heavy-duty, high current power cord 6' ◊ Quick Start Guide ◊ Port Plugs (free upon request) ◊ Unbalanced stereo input/output Unbalanced stereo input/output ◊ Speaker Level Stereo Input ◊ Auto/On and Trigger options through app, 3-12V AC/DC trigger ◊ RoHS compliant, lead-free construction, world-wide safety certifications ◊ Green 0.5-watt low standby power consumption ◊ Dual 2.5-inch ports

App Control Bluetooth controlled subwoofer DSP smartphone app works with iOS, Android and Amazon operating systems ◊ Easiest and most convenient way to adjust crossover frequencies, parametric EQ, polarity, room gain and all other bass management functions ◊ Three convenient custom presets allow for perfect tuning in any room or system, from your favorite seat ◊ Unique bidirectional feedback shows adjustments in real time on both app and subwoofer interface ◊ Easy-to-follow tutorial provides clear guidance for all functions.

Additional Feature(s) 2-meter ground plane away from reflective structures (quasi-anechoic). ◊ Roll-off slope specifically optimized to take maximum advantage of available room gain.

Height 18.9 inch(es) / 479 mm

Width 15 inch(es) / 380 mm

Depth 20 inch(es) / 509 mm

Weight 42.5 lb(s) / 19.3 kg with Grille

Height 23.4 inch(es) / 594 mm

Width 19.9 inch(es) / 506 mm

Depth 24.4 inch(es) / 619 mm

Weight 51.6 lb(s) / 23.4 kg

UPC 856677007879
